MidNite Solar Classic 150 SL MPPT Solar Charge Controller Review
The MidNite Solar Classic MPPT charge control is the most advanced controller on the market. It comes in 3 standard versions (150, 200 and 250 volts) that will charge up to 72 volt battery banks using solar panels, wind or hydro power. The version number corresponds to the highest operating voltage that the controller can manage on the other hand. The Classic is also the most powerful control accessible because of the built-in ground fault protection. The Classic controllers are also one of the easiest to set up and use. MidNite Solar has taken the guesswork out of setting up your system by implementing a set up wizard with voice prompts. The wizard will help walk you through battery hook up, PV range sizing and hook up, cable sizing, breaker choice, PV combiner selection, sunrise and sunset program set up and voltage drop calculations. The Classic SL components can be paralleled together with other SL units, standard Classics, and the Classic Lite controllers for battery charging using multiple PV arrays. Take a look at this chart to observe how the Vintage compares to the competition.
- User-friendly menu structure.
- Manual equalization.
- Built in DC Ground Fault Protection.
- Communicates with the Whizbang Jr.current sensing module
- 150 VDC operating voltage.
- Max current out: 96 amps.
- 12-72V battery charging standard.

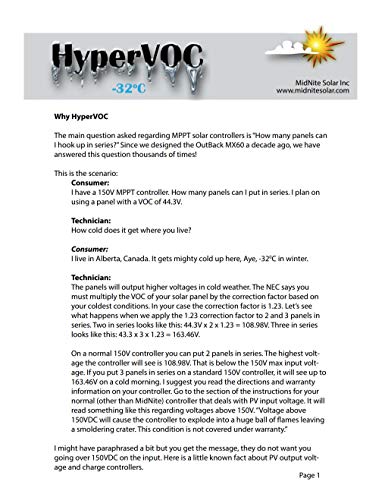

- Exclusive HyperVOC extends VOC limits.
- Remote and local displays possible.
- 380 days of daily history/24 hrs of data/5 minute intervals.
- Type 1 environmental rating.
- Terminals are rated for 75° C.
- Modbus and RS232 Communications.
- Will parallel with other Classic 150-SLs, Standard Classic, and Classic Lites.
- ETL listed to UL1741 and CSA.
- Battery Temperature Sensor sold separately on the SL version controllers
- 150 operating voltage | Solar only | Max current out: 96 amps | ETL listed to UL1741 and CSA
- Type 1 environmental rating | Terminals are rated for 75 C | Exclusive HyperVOC extends VOC limits
- 12-72V battery | Built in DC-Ground Fault Protection | Optional Battery Sensor for temperature correction on battery charging
- Warranty - 5 yrs. | Listed by ETL for US & Canada | CE Certified Listed
- FCC Class B Listed | Made in the USA
